Nano 35 Low Level Powered Access Scissor Lift - 3.5 m

SKU: LJLPO-0008  |  Model: Nano 35
£8,299.20
£6,916.00
Committed to Safety, Quality, and Security
Badge-1
Badge-2
Badge-3
Badge-4

The Nano 35 is a low level powered access platform is designed for areas where a smaller working footprint is required. With a working height of 5.5m, the Nano 35 is designed for internal use and comes with a wide range of safety features.

  • Weight
    432 KG
  • Manufacturer
    JLG
  • Product Material
    Steel
  • Model Number
    Nano 35
  • Safe Working Load / Capacity
    200 KG
  • Platform Height
    3.5 m
  • Platform Dimensions
    0.84 x 0.58 m
  • Working Height
    5.5 m
  • Closed Dimensions
    1.20 x 0.76 x 1.95 m (L x W x H)
  • Additional Information
    Working Outreach: 0.65 m
    Closed Platform Height: 0.70 m
    Maximum Manual Force: 200 N
    Maximum Castor Point Load: 208 kg (2.04kN)
    Maximum Wheel Force: 208 kg (2.04kN)
    Power Sound Level: Less than 70 DBa
    Maximum Wind Force: Internal Use Only - 0 m/sec
    Maximum Gradient For Operation: 0.5 Degrees
    Input Voltage: 110-230v AC





  • Image Information
    We try to have images for every product however some images aren't available from our suppliers. Please double check the specifications, images are for illustrative purposes only.

QUESTIONS AND ANSWERS

Ask a Question
Have a Question?Be the first to ask a question about this product.

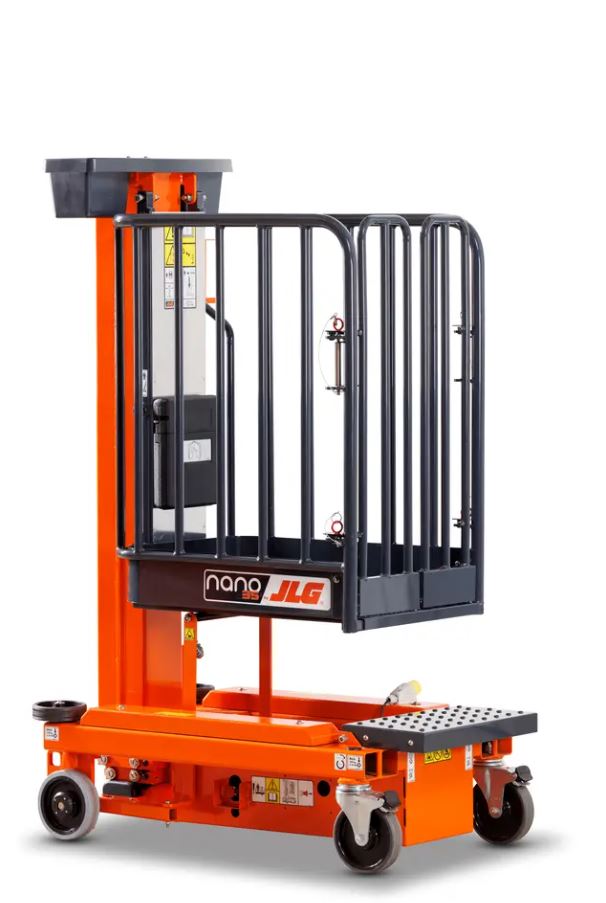

Nano 35 Lift Platform Closed
