Werner D Rung Aluminium Triple Section Extension Ladders

Good Morning,

The size of the spring is approximately 30cm.

Kind Regards

Meg

Good Afternoon

This is just the hinge no fixings.

Kind Regards

Meg

Good Morning

Unfortunately it does require mounting, the ladder is fixed to the hatch door to assist with the pulling out and putting away of the deluyze. It is a particularly heavy product and requires this assistance.

Kind Regards,

Meg

"When attaching the Guide and pivot please ensure the following steps have been conducted."

"When preparing the loft ladder for instillation, carefully use a sharp knife to cut along the groves and remove both end caps on the base section of the loft ladder. Please keep the end caps as you will require these components for later use. Once this has been conducted, please insert you 12MM screws into component H (Retainers and stops) Slide the Retainer and stops onto the product."

"Once this has been completed, you can then insert your guide and pivot assembly, however, please ensure that the guide has been inserted into the product the correct way, this is shown on the installation instruction. Once this has been completed, you will be able to insert component M (Retainers and Stops) Loosely insert your other set of 12MM Screws and slide your retainers into the base section of the product."

"Once this has been completed, you will need to refer to the start process re-inserting your end caps that you have removed at the start of the instillation process.
You will need to then measure the distance between the floor of the room to the floor of the loft, 2.70M as an example. Place your paper template that is provided in the full fitting kit, on the back ladder section with the cutout lining up with the top hole, position the stop at the required height (2.70M Used as example)  you will then need to tighten both of the stop screws, please repeat this process with the stops on the other side of the ladder."

"Please note, when disengaging the product from the loft space you should be bringing this down in a coordinated manner and not letting the product drop."


Good Afternoon,

They can be whatever size is required, the minimum would be 95mm.

Kind Regards

Meg

Good Afternoon,

Please drop us an email to customerservice@ladderstore.com with some additional details and we can look into this for you.

Kind Regards,

Meg

The outer case of the hatch door is simply an MDF timber, so it can be painted, not a problem.

I would recommend the hatch door is appropriately prepped & primed, as the hatch door surface has quite a smooth finish

I’ve taken a screen shot of the hatch door closed from our installation video, see below.

Note that the installer in the video has fitted their own architrave kit to surround the ladder casing.

We do not supply these as standard because many people want to fit their own style of timber rail, which may match their nearby door frames or skirting boards etc in the home.

Good Morning,

This conforms to the EN131 standard so is tested up to 150kg.

Kind Regards,

Meg

Good Afternoon,

It measures 2cm across.

Kind Regards,

Meg

Good Morning,

It is 12kg.

Kind Regards,

Meg

Good Morning,

The base width is 51cm on the 5 tread steps.

Kind Regards,

Meg

Good Morning,

The weight of the 3 tread is 3.5kg.

Kind Regards,

Meg

Good Morning,

No this is ladder only, you can however have the option to add a loft hatch. All the aluminium are ladder only and all timber are fully integrated kits with hatch included.

Kind Regards,

Meg

Good Afternoon,

The boss PA push around powered scissor lift 3.4m is 375kg.

Kind Regards,

Meg

Good Morning,

It can be yes, please email in to us at customerservice@ladderstore.com and we can get a price for this.

Kind Regards,

Meg

Good Morning,

Yes this is an add on on the drop down menu.

Kind Regards,

Meg

Good Afternoon,

The Dimensions of this are - Length :1103 mm x width : 52mm

Kind Regards,

Meg

Good Morning,

Unfortunately not under the EN131 standard ladders can no longer be split into sections.

Kind Regards,

Meg

Good Morning,

These can be painted in any of the Cuprinol 'Garden Shades' range. The colours can be found here- https://www.cuprinol.co.uk/product/cuprinol-garden-shades

Kind Regards,

Meg

Good Morning,

These are the 'Cuprinol Garden Shades' they can be painted in any of this range.

Kind Regards,

Meg

Good Afternoon,

I have measured this and it is 8.9cm width x 2.4cm deep. If you would like images of the measurements please email in to us at customerservice@ladderstore.com.

KInd Regards,

Meg

Good Afternoon,

The insert piece is 7cm long x 1.3cm wide x 2.3cm deep.

If you would like some images showing these dimensions please email into us customerservice@ladderstore.com and we will look into this.

Kind Regards,

Meg

Good Afternoon,

Please see the below, this is the casing 1.13 x 0.55 x 0.14.

However this is only suitable for the 34535000, 34530300, 76103, 76903 and 35903. If you could send in some images to us at customerservice@ladderstore.com we can have a look to see if we can identify your loft ladder and supply the correct part.

Kind Regards,

Meg

Good Afternoon,

You do not have to be PASMA trained in order to use the Teletower.

Kind Regards,

Meg

Good Afternoon,

This is for professional use, it complies to the BS EN131-7 which is the professional standard.

Kind Regards,

Meg

Good Afternoon,

No the Adjustable ladder stand off is to be used only with the extension ladders.

Kind Regards,

Meg

Good Afternoon,

We advise leaving the opening please leave an extra 10 mm all round for room to work with.

Minimum opening required 610 x 2089mm - internal frame 546mm x 1968mm.The height of the Stira folded 305mm high and the Semi motor unit is 533mm high.

Kind Regards,

Meg

Good Afternoon,

These brackets are sold indvidually.

Kind Regards,

Meg

Good Afternoon,
The full length of the handrail is 79cm, but the distance between the fitting points are only 71cm. This does not come with the screws or fixings.

Kind Regards,

Meg


Good Afternoon,

The measurements are - 48cm long closed (74mm long open)

These are compatiable with models 34535000, 76105,76903, 35903.

Kind Regards,

Meg

Good Morning,

The platform width is 0.55m

Kind Regards

Meg

Good Afternoon,

The dimension of the opening on the foot is 85mm long x 20mm width.

Please note these feet are only compatiable with the Werner Hideaway Timber Loft Ladder (76105), Werner Timber Complete Loft Ladder (76103), Youngman Eco S Line (Werner Eco S Line) (34535000) and Youngman Timber Line Loft Ladder (34530300).

Kind Regards,

Meg

Good Afternoon,

Unfer the speicifcation tab it gives you the floor to ceiling height which is is suitable for in this instance this size is suitable for 3091 - 3390mm.

Kind Regards,

Meg

Good Afternoon,

It is 50mm Expanded Polystyrene.

Kind Regards,

Meg

Good Afternoon

This weighs 10.2kg.

Kind Regards,

Meg

Good Afternoon,

Please see the below specifications -

Maximum safe working height 5.4m (indoors), 4.6m (outdoors)
Maximum platform height 3.4m (indoors), 2.6m (outdoors)
Minimum platform height 0.66m

Kind Regards,

Meg

Good Afternoon,

The width is 465mm.

Kind Regards,

Meg

Good Afternoon,

Yes it does it comes as a full kit.

Kind Regards,

Meg

Good Afternoon,

This is only specific for the Little Giant Ladders. Potentially the universal one would fit depending on specifications - https://www.ladderstore.com/products/ladder-stand-off

Kind Regards,

MEG

Good Afternoon,

Please can you send some images in to customerservices@ladderstore.com. So we can have a look into this for you.

Kind Regards,

Meg

Good Afternoon,

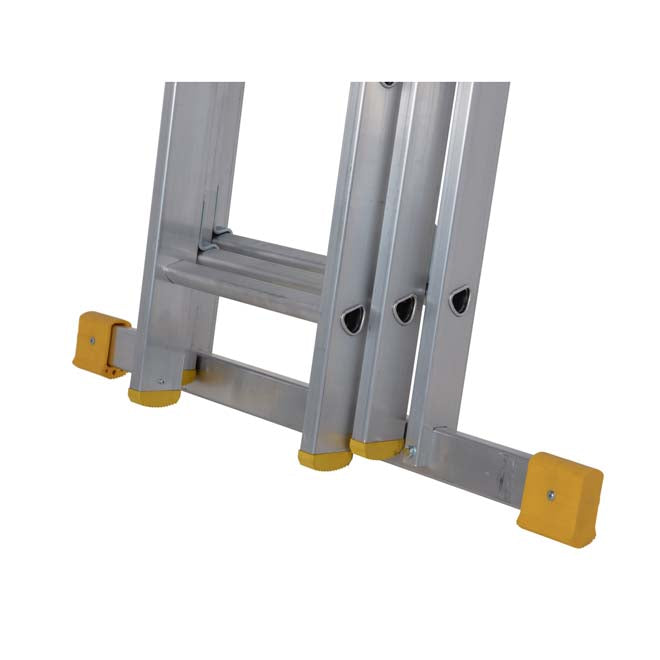

The size of the stabiliser bar is 1m.

Kind Regards,

Meg

Good Afternoon,

The midmade 800mm and 1050mm are compatiable however this one is not compatiable as it is a different supplier.

Kind Regards

Meg

Good Afternoon,

You can buy the black part seperatley this is called the guide and pivot-https://www.ladderstore.com/products/guide-pivot-assembly-for-youngman-easiway-spacemaker-loft-ladders

Kind Regards

Meg

Good Afternoon,

The Overall Size: 821mm x 656mm and fitting size is 562mm x 726mm.

Kind Regards,

Meg

Good Afternoon,

The safe working load / capacity is 150kg.

Kind Regards,

Meg

Good Afternoon,

This is just for the wire pivot arm which can be seen where the arrow is pointing. If you could advise what it is you require part wise we should be able to source as this is one of many parts we are able to source for the Easiway loft ladder.

Please send us an email to customerservices@ladderstore.com and we can have a look into this for you.

Kind Regards,

Meg

Good Afternoon,

The Powder coating supplier has advised the epoxy coating will be fine in environments between circa minus 40 Celsius to plus 40 Celsius, as a general rule of thumb. The paint could become brittle if stored in very cold environments, so should ideally only be used, not stored, in these temperatures. You should also take care not to deliver heavy blows or knocks to the framework, as the paint may chip when brittle.

Kind Regards

Meg

Good Afternoon,

This is the starts at due to the fact there are so many configurations. If you scroll to the bottom of the page there is the different examples of how you can have this.

If you would like to discuss and then we can quote please drop us some details across on sales@ladderstore.com and we will be happy to get these for you.

Kind Regards,

Meg

Good Afternoon,

The working height is the height it is safe to reach based on the last safe standing height + 1.5m for the average height of a person. If you can send your requirements across to us at sales@ladderstore.com we will be able to advise you further.

Kind Regards,

Meg
