Werner Easi-Build Timber Loft Ladder Complete With Hatch

SKU: LLLWL-0003  |  Model: 34538000
(0 Reviews)
£322.80
£269.00
Committed to Safety, Quality, and Security
Badge-1
Badge-2
Badge-3
Badge-4

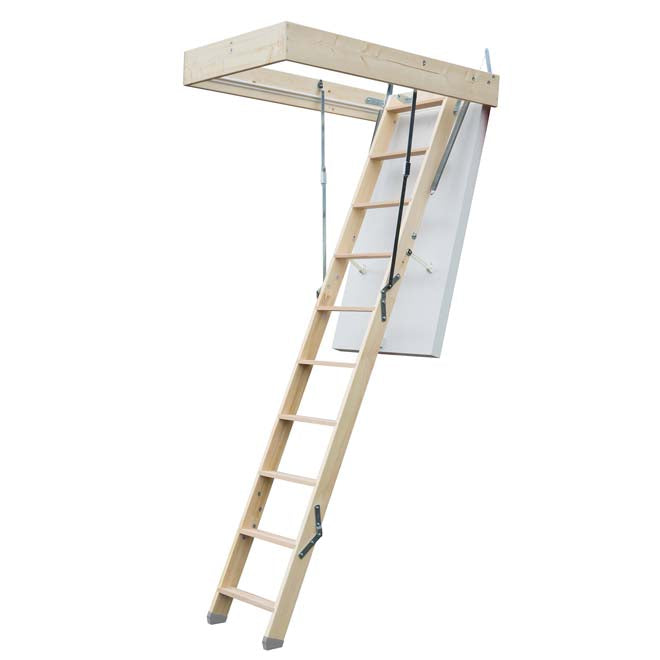

The Werner 34538000 Easibuild loft ladder is a complete wooden loft ladder with insulated hatch, airtight trapdoor and option extension piece for high ceilings. The Easibuild range has been designed to save upto 30 minutes installation time with thanks to its clickfix technology.

  • Weight
    22.2 KG
  • Manufacturer
    Werner
  • Product Material
    Timber
  • Classification
    BS EN14975
  • Model Number
    34538000
  • Ladder Width
    420 mm
  • Product Dimensions
    Shipping Dimensions: 1.13 x 0.54 x 0.31 m
  • Number Of Rungs
    12 Rung
  • Tread Dimensions
    0.25 m Pitch - 0.38 m Width - 0.07 m Depth
  • Number Of Sections
    3 Sections

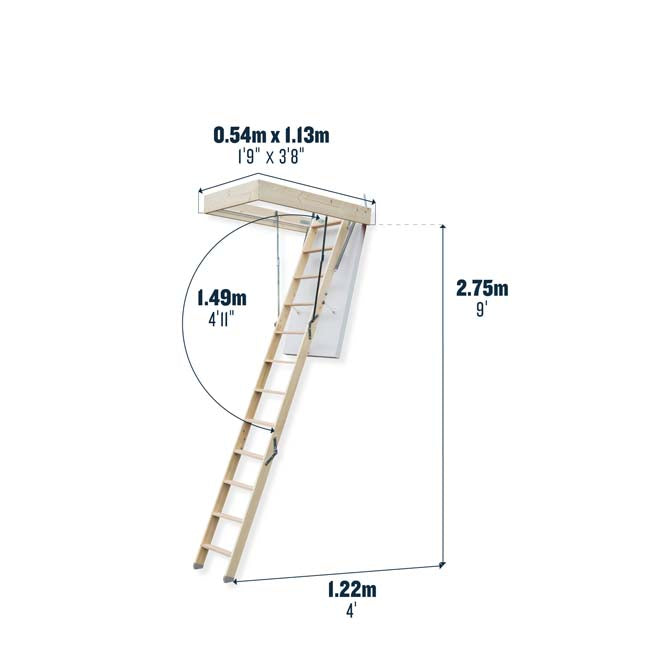

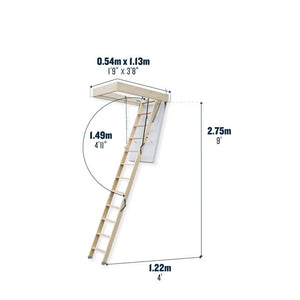

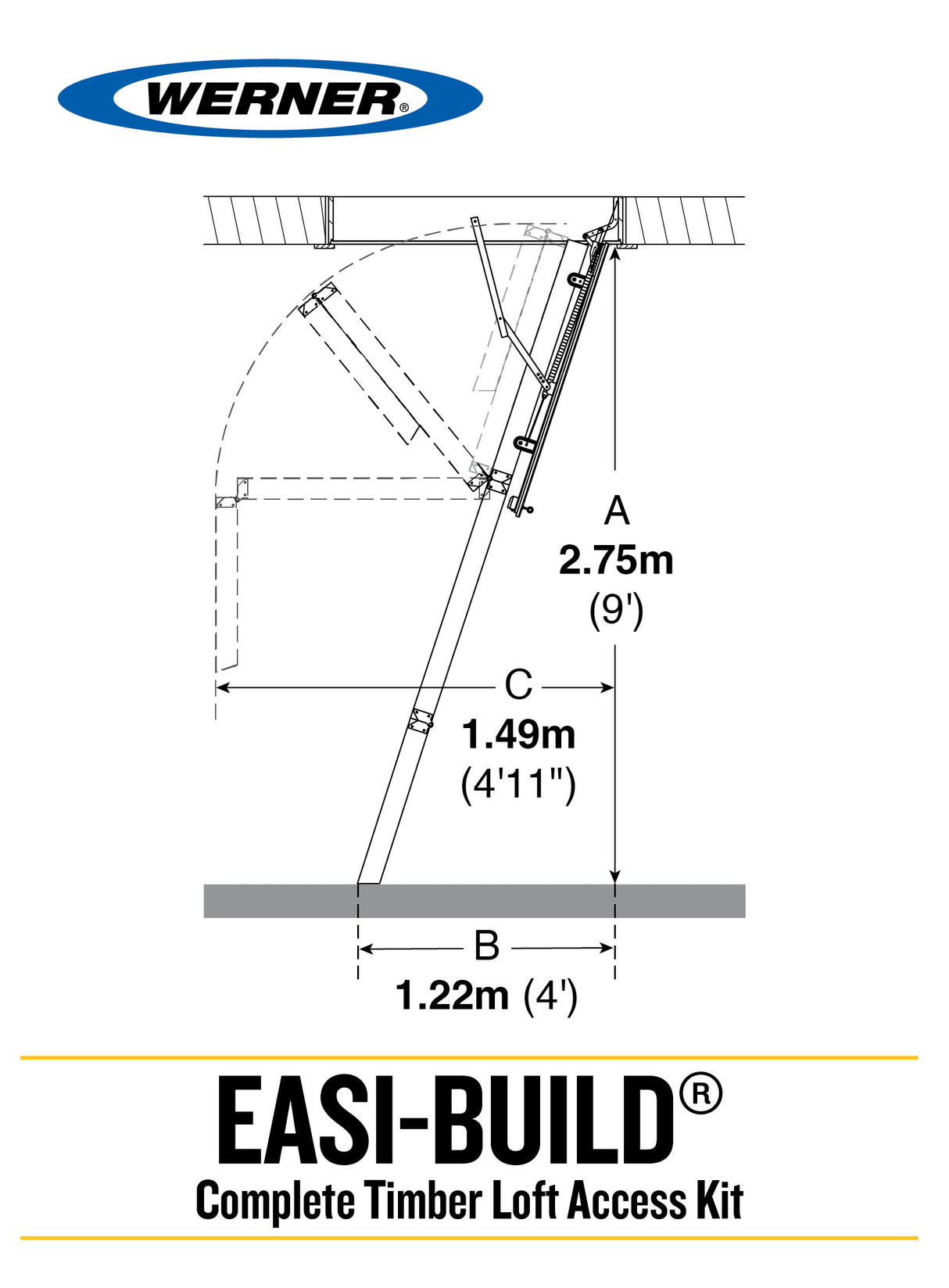

  • Floor to Ceiling Height
    Up to 2.75 m (3.22m With Extension Piece)
  • Min Loft Opening Size Required
    1150 x 560 mm
  • Loft Space Horizontal Clearance
    0 mm
  • Loft Space Vertical Clearance
    0 mm
  • Min Folding Swing Clearance Required
    1490 mm
  • Minimum Landing Space Required
    1220 mm
  • Hatch Dimensions
    1150 x 560 mm
  • Hatch Insulation
    56 mm (U-Value 0.62)
  • Additional Information
    Case Thickness x Depth = 18 mm x 140 mm
  • Manufacturer Guarantee
    5 Years

QUESTIONS AND ANSWERS

Ask a Question
Q:What material is the trap door made of? I want to be able to paint it. Please can you send a photo of the door shut?

The outer case of the hatch door is simply an MDF timber, so it can be painted, not a problem.

I would recommend the hatch door is appropriately prepped & primed, as the hatch door surface has quite a smooth finish

I’ve taken a screen shot of the hatch door closed from our installation video, see below.

Note that the installer in the video has fitted their own architrave kit to surround the ladder casing.

We do not supply these as standard because many people want to fit their own style of timber rail, which may match their nearby door frames or skirting boards etc in the home.

By LJ On Sep 3, 2024, 10:06 PM
