Guide & Pivot Assembly for Youngman Easiway & Spacemaker Loft Ladders

SKU: LYOLA-2140  |  Model: 00779900
(15 Reviews)
£18.43
£15.36
Committed to Safety, Quality, and Security
Badge-1
Badge-2
Badge-3
Badge-4

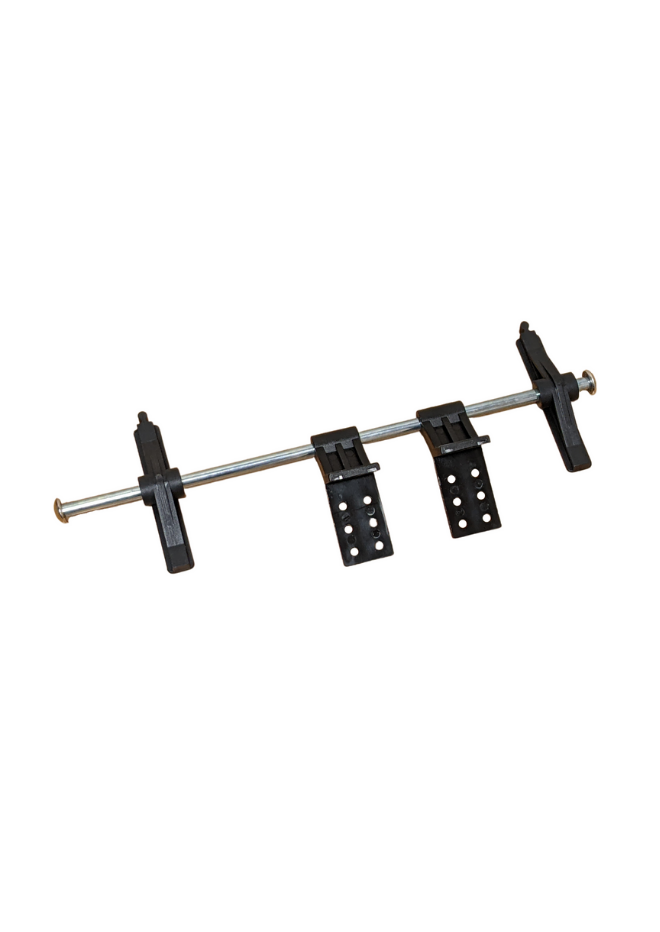

Guide & Pivot Assembly for Youngman Easiway & Spacemaker Loft Ladders

  • Weight
    0.5 KG
  • Manufacturer
    Youngman
  • Product Material
    Aluminium
  • Model Number
    00779900

QUESTIONS AND ANSWERS

Ask a Question
Q:How can I tighten the guides so that the ladder doesn't slide onto me prematurely when first opening. Thank you.

"When attaching the Guide and pivot please ensure the following steps have been conducted."

"When preparing the loft ladder for instillation, carefully use a sharp knife to cut along the groves and remove both end caps on the base section of the loft ladder. Please keep the end caps as you will require these components for later use. Once this has been conducted, please insert you 12MM screws into component H (Retainers and stops) Slide the Retainer and stops onto the product."

"Once this has been completed, you can then insert your guide and pivot assembly, however, please ensure that the guide has been inserted into the product the correct way, this is shown on the installation instruction. Once this has been completed, you will be able to insert component M (Retainers and Stops) Loosely insert your other set of 12MM Screws and slide your retainers into the base section of the product."

"Once this has been completed, you will need to refer to the start process re-inserting your end caps that you have removed at the start of the instillation process.
You will need to then measure the distance between the floor of the room to the floor of the loft, 2.70M as an example. Place your paper template that is provided in the full fitting kit, on the back ladder section with the cutout lining up with the top hole, position the stop at the required height (2.70M Used as example)  you will then need to tighten both of the stop screws, please repeat this process with the stops on the other side of the ladder."

"Please note, when disengaging the product from the loft space you should be bringing this down in a coordinated manner and not letting the product drop."


By John Taylor On Oct 13, 2024, 10:48 AM
Guide & Pivot
Ladderstore UK

Guide & Pivot Assembly for Youngman Easiway & Spacemaker Loft Ladders

£18.43
£15.36

Manufacturer

Youngman

Product Material

Aluminium

Classification

N/A

Model Number

00779900

Safe Working Load / Capacity

N/A

Product Colour

N/A

Extended Height

N/A

Ladder Length

N/A

Platform Height

N/A

Platform Dimensions

N/A

Toe Plate Size

N/A

Working Height

N/A

Achievable Height

N/A

A Frame Height

N/A

Open Height

N/A

Open Height

N/A

Closed Dimensions

N/A

Closed Height

N/A

Ladder Width

N/A

Base Width

N/A

Stabiliser Bar Length

N/A

Ladder Angle

N/A

Can Be Used On Stairs?

N/A

Product Dimensions

N/A

Minimum Bed Height

N/A

Maximum Bed Height

N/A

Warehouse Step Parking Type

N/A

Warehouse Step Parking Type

N/A

Number Of Rungs

N/A

Treads

N/A

Tread Dimensions

N/A

Number Of Sections

N/A

Rungs Per Section

N/A

Tread Additional Information

N/A

Handrail Options

N/A

Floor to Ceiling Height

N/A

Floor To Floor Height

N/A

Min Loft Opening Size Required

N/A

Loft Space Horizontal Clearance

N/A

Loft Space Vertical Clearance

N/A

Min Folding Swing Clearance Required

N/A

Stow Space Required

N/A

Minimum Landing Space Required

N/A

Hatch Dimensions

N/A

Hatch Depth

N/A

Fitting Size

N/A

Hatch Insulation

N/A

Insulation Rating

N/A

Maximum Depth

N/A

Fork Length

N/A

Width Over Fork

N/A

Lowered Height Of Forks

N/A

Raised Height Of Forks

N/A

Number Of Shelves

N/A

Bearers

N/A

Wheel Size

N/A

Lift Height

N/A

Pallet Type

N/A

Manufacturer Guarantee

N/A
View product
